Have you ever been interested in what it looks like inside a crypto-currency hard wallet?
I found out! And now i share it with you.
Content table:
1. What is a Ledger Nano S and what can you do with it?
2. What it looks like inside a cryptocurrency hard-wallet?
3. Which components can you find in a Ledger Nano S and where are they?
4. Have a closer look inside the components of Ledger Nano S!
We all know whats missing...
This content is free for you to enjoy. That does not mean, that it was free to produce.
Download the Brave-Browser today and start collecting BAT by browsing though the web.
while we create fantastic content for you can contribute us through the Brave-Browser with basic attention token.
You can also Tip here:
bc1qwcyp7ggfnvct4k2p6p4awdmt5g7c5vt2jwf793
ltc1qlnusmpte8js8fxtgqtges9tlk2knm4s2trrnk9
Thank you!
What is a Ledger Nano and what can you do with it?
The ledger nano S is a light weight with 16.2 gramm and measures 57 x 17.4 x 9.1 mm. The 128 x 32 pixels screen and the two separated buttons let you handle your crypto assets safely. Hardware wallets like the Ledger nano devices allow you to store coins in what is called ‘cold storage’. Cold storage is the method by which private keys as well as other information (privacy) is kept away from any contact with the internet. Methods of cold storing Bitcoin and other cryptocurrencies (such as paper wallets) have evolved over time.
Hard-wallets are easily accessible and are a good balance of security and functionality.

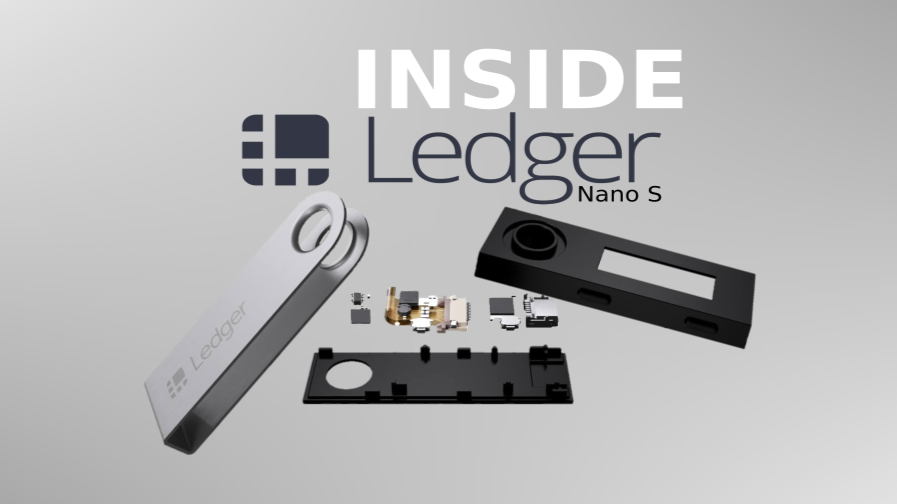

Let’s have a look inside the Ledger Nano S!
Never do this with your own Ledger!
Ledger doesn't refund you nor guarantees you safety if you do so.
Don't have a Ledger yet? Get one now https://ledger.shop.com.
A short and important DISCLAIMER: Never do this at home with your own ledger. Ledger doesn't refund you nor guarantees you safety if you do so.
Which components can you find in a Ledger Nano S and where are they?
Components
- [PURPLE] Micro USB 5 pin (5v)
- [PINK] A 3,3 v AF Box regulator
- [ORANGE] One STM32F042x4 microcontroller.
- [GREEN] Two Buttons for the input
- [BLUE] One ST31H320 microcontroller (also used in credit cards)
- [YELLOW] A 12 pin LCD connector
- [RED] One 12 v ST8R00W microcontroller
- [PINK] With an inductor next to it.
The Ledger Nano S has no battery and need to be connected to a device in order to operate.
The Ledger got a hard plastic cover
which measures 57 x 17.4 x 9.1 mm
and a 128 x 32 pixels screen connected to a 12 pin LCD connector.
All 23 components on the 3 layered circuit board are made by STMicroelectronics.
In order to send and receive crypto-assets, your ledger needs to be connected via a micro USB cable to your computer or smartphone.
Right next to the Micro USB 5 pin (5v) Module
we can find the A 3,3 v AF Box
which regulates the communication with the STM32F042x4 microcontroller (Chip).
The buttons for the input are robust and very simple.
A ST31H320 microcontroller,
also used on todays credit cards is located
Don't have a Ledger yet? Get one now https://ledger.shop.com.
right next to the condensator and resistance. (R1, C6)
The 12 pin LCD connector seperates the the two microcontroller
from a third one. A 12 v ST8R00W microcontroller
located next to the inductor.
The second Button for input can be found next to it, too.
Want to have a closer look at some components (CHIPs) of Ledger nano S hard-wallet.
Isn’t it interesting how easy and simple a Ledger Nano S works? When do you start building your own?
Deus Ex Silicium assembled the complete Ledger Nano S and tested it.
So, the Ledger Nano S is disassembled. There is no need for you to do so anymore. Leave a comment if you enjoyed it.
Maybe you are interested now in ordering a Ledger Nano S.
