Today I will present to you my graduation project, which is a machine for drawing or sculpting on plastic, aluminum and wood sheets, and it is an electro-mechanical machine that is controlled by
Programmed in the Arduino device, the sculpting engine in it is controlled in three axes, i.e. three dimensions. The motors that carry the sculpting engine in three dimensions are six stepping motors that have high accuracy in movement and that can be controlled even to the degree of rotation. I also provided the machine with a cooling device It consists of 3 DC motors that I put in series with small fans, and I added a protection system for the machine that consists of a light resistance that receives the laser beams in the case of approaching the machine during its work The sculpting process stops to start the alarm bell with the red gyrovar lights as I added to the machine an electric tray Control it via a button and at the end of the stairs from both ends, the end of the movement receiver so that it does not continue its movement when it reaches an end zone

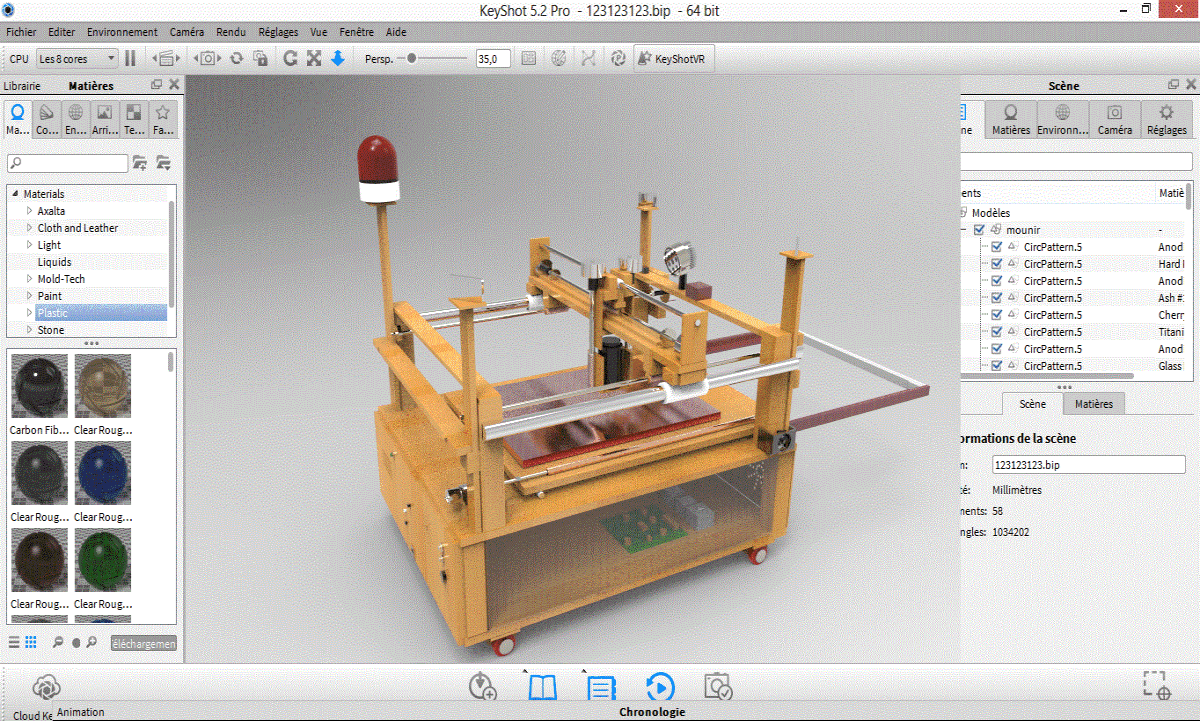

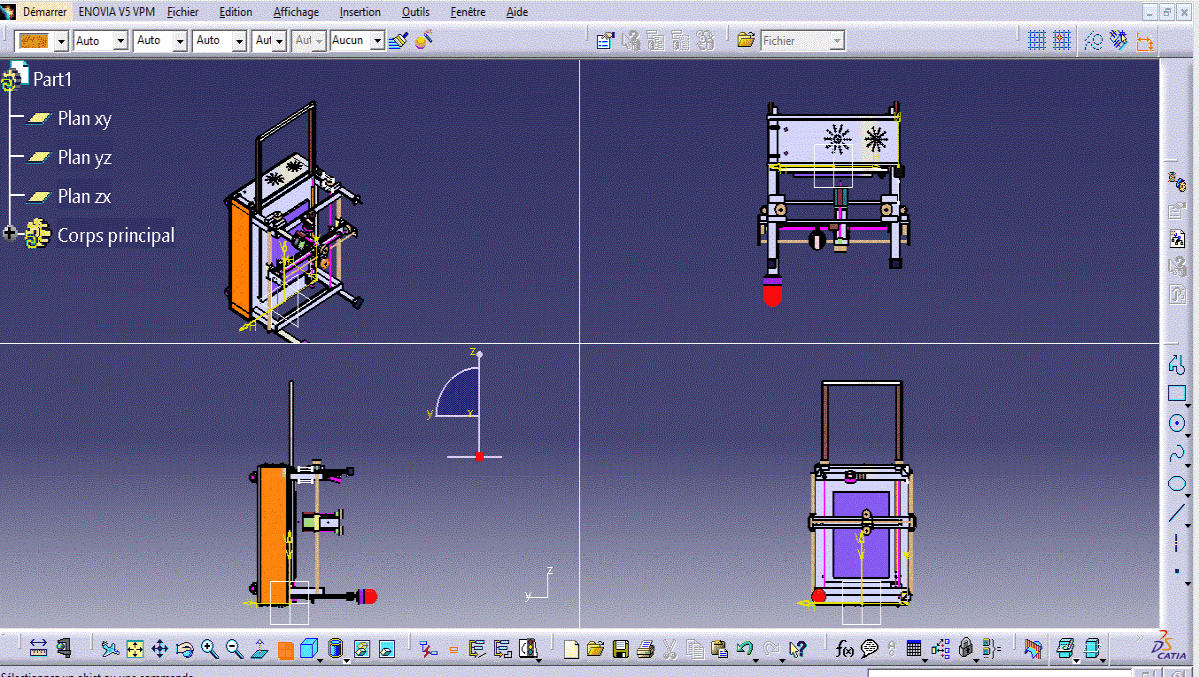

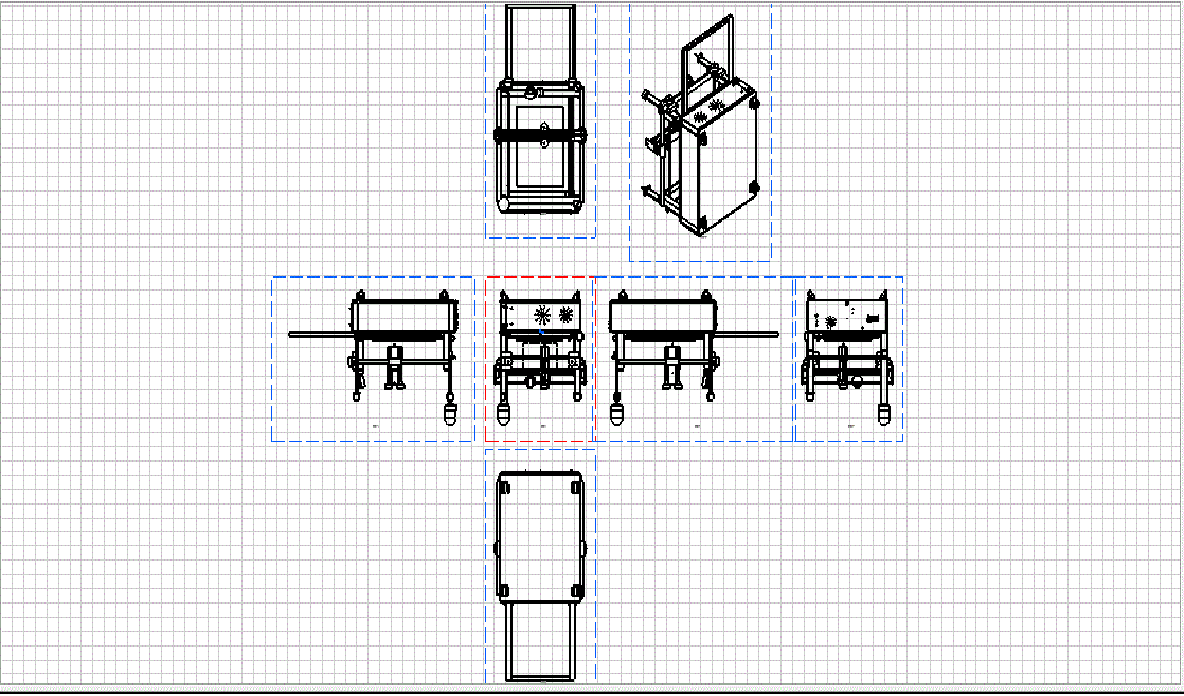

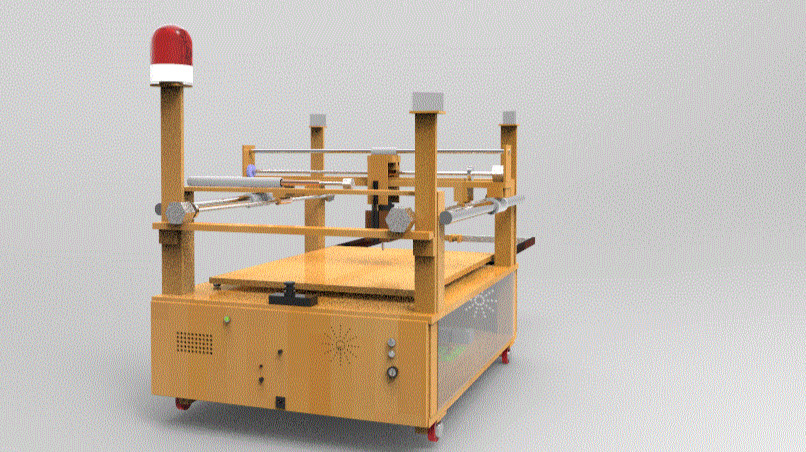

I also added some wheels to the machine to facilitate moving it and moving it from one place to another. I also added illuminations in several parts of the machine. These are some pictures of the machine. I will put the rest of the pictures and video of it when the machine is finished.
