Technology is amazing and the rate at which it evolves is mind blowing. At home I have multiple items that used to be common but nowadays are obsolete. Well, this sounds like I'm really old. Sadly I haven't held punch cards in my hands, though I would buy a pack (and maybe a reader?).
The items that come to my mind include
-
CPUs
-
floppy disks (different sized)
-
EEPROMs
-
logic gates (you know what's a logic gate, right?)

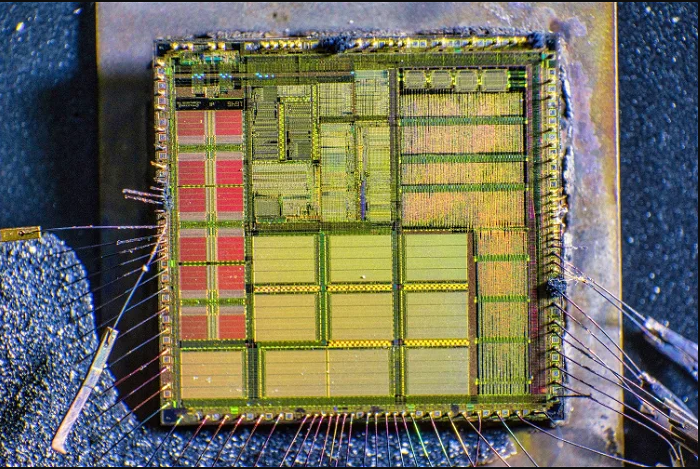

This beauty below was rather easy to reach - it was protected just by a metal case on top. You see the little traces and paths in the chip above? These are wires! By the way, it looks big but in reality, it's tiny. The width of what you see is something like 7 mm (for the Imperial unit users - about a quarter of an inch).
The circuit board of an electronic component from the 80s or so (own photo).
You might have noticed that my previous paragraph started with the fact that reaching the chip was easy. Well, this is because modern chips are made indestructible! I'm not joking! You can read about all kinds of stories and crazy experiments - from boiling in concentrated sulphuric acid to producing fuming nitric acid in a home lab... well, this latter part is something I'm not willing to try. At least not in my kitchen. Oh, and if you're wondering what's fuming nitric acid... you don't want to know. The toxic corrosive reddish brown fumes of nitrogen dioxide coming out of the equipment tell enough about it.

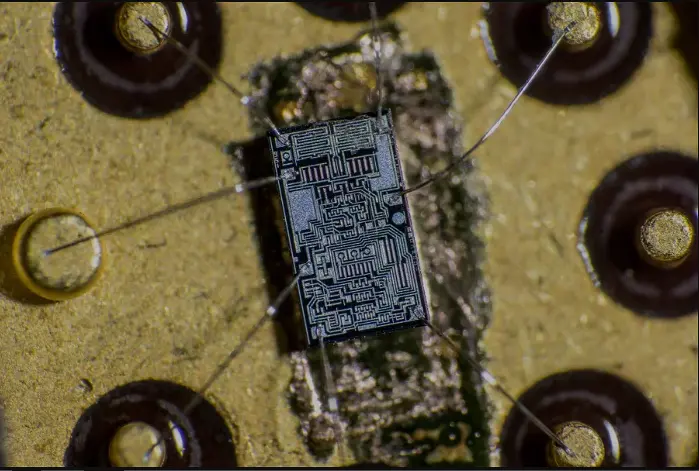

I managed to reach the one below, though, and I'm really happy with the result. It came from an old SD card. The major part of the memory card is a repeating structure when data gets saved. But a memory card is not just the storage space - there is a controller that tells it what to do. And this is what the controller of my SD cards looks like.
This is a small chip from an SD card - but it's the control unit, not the flash memory (own picture).
I have more to tell about chips and the beautiful colours produced on the silicon surface, but that deserves a separate article.
At my parents' place, I have more old treasures like
-
a Walkman
-
audio cassettes
-
VHCs
-
a video cassette player
Also, I have a tamagochi, well, not an original one, but a cute electronic pet. When I was a child, I really wanted tetris, too, but I never got one! Mommy...
I was thinking about whether to add CDs and DVDs to the list, too. I've used them massively, but nowadays computers no longer have a CD drive...
An audio cassette (Picture source: Unsplash)
This turned out to be more of a visual article than informative, but I can write more on microchips in a future article if somebody is interested.
P.S. I have shared more photos of chips before in this post.
