Newly minted Bitcoin are rewards for a mathematical race that maintains the ledger of transactions. Rules for the race and rewards are fixed and inherent in the protocol. It is the decentralised incentive structure to keep the ledger honest and the value scarce that sets Bitcoin apart from other currencies and assets. Herein I provide a detailed explanation and code of how Bitcoins are mined.

Blocks

Bitcoin transactions are grouped by time frame (roughly 10 minutes) and ordered in blocks with meta data that meet protocol requirements. Each block is sequential and agreed by consensus. The first miner to reach meta data requirements for the current block and reach approval through network consensus is awarded the block reward in addition to all transaction fees in that block. See the two figures below to understand the incentive structure for mining.

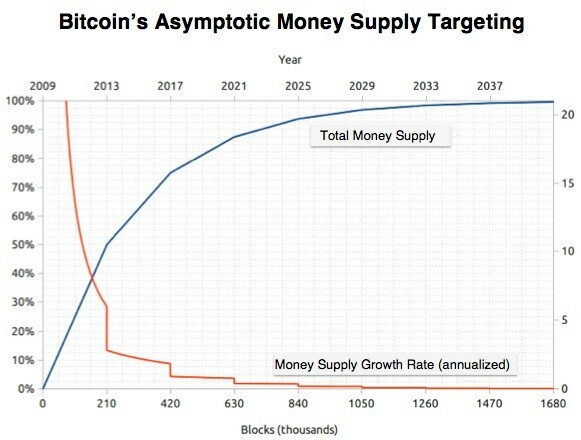

Supply

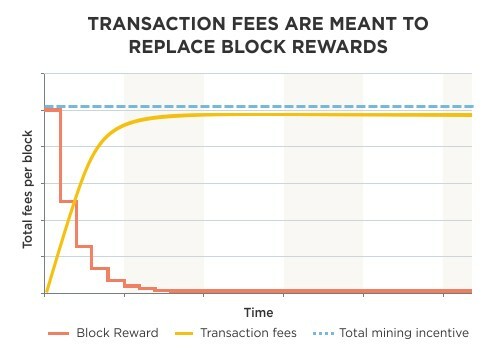

Fees



Presently, the block reward is 12.5 bitcoin. At the current price ( ~ $ 10,000 / btc ), that's more than $ 125,000 every 10 minutes! I hope that sparks your interest. It did for me. The first step in mining is to maintain a bitcoin node, which stores and validates the full ledger. This can be installed from Bitcoin.org. I will use KDB+ to interface with the node and mine Bitcoin as it is the most efficient way to handle data. Full code can be seen at: our Github page.

Block templates

A template for the current block can be attained from our local node. (for details, see: Bitcoin.org)

template: .bitcoind.getblocktemplate[template_request]


template[`height] : 605355 // block height to be mined
template[`curtime] : 1574689408 // unix epoch time
template[`coinbasevalue] : 1274375042 // block reward in satoshis
template[`version] : 536870912 // indicates which validation rules to use
template[`bits] : "1715b23e" // encoded target
template[`target] : "00000000000000000015b23e0000000000000000000000000000000000000000"
template[`previousblockhash] : "000000000000000000042e1de089b9ee56a5aeab5f49dc534f090bfe022cbec8"
first template[`transactions] :
data   | "0200000002446b124c95e37465f0d8a229450f6f77cb031b188a7d2f7074b..."
txid   | "9995322b1aa0c4518e031efadc9a51da4831217631010662c36516e776594e17"

Block headers

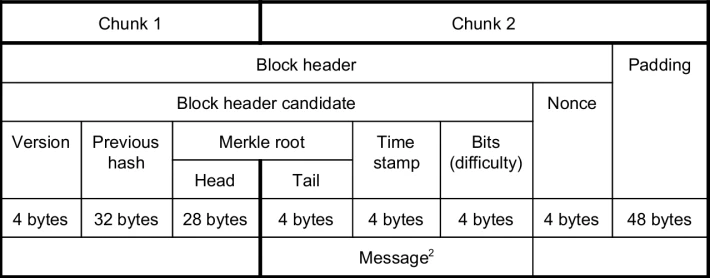

Our job as the miner is to construct the required header with this information that hashes to a lower value than the target. The header itself is a concatenated hexadecimal string consisting of the following (from Bitcoin.org):

Blocks



Merkle root

"Merkle roots allow for efficient and secure verification of large data structures, and in the case of blockchains, potentially boundless data sets." (coinomi)

Merkle



buildmerkleroot:{[leafs]
    leafcount:  count leafs;
    root:  $[1 = leafcount; first leafs;
        [if [0 < leafcount mod 2; leafs: leafs,enlist last leafs; leafcount: 1+leafcount;]; // if odd number, duplicate last record
        oddindicies: 1+2*til "i"$(leafcount%2);
        evenindicies: 2*til "i"$(leafcount%2);
        hashpairs: leafs[evenindicies] ,' leafs[oddindicies];
        branches:{  doubleSha256Byte x } peach hashpairs;
        buildmerkleroot[branches] ]  ];

    root };


hashlist: {x[`hash]} each transactions;
hashlist: (enlist coinbasetranshash), hashlist;
bytehashlist: hexstring_to_hex peach hashlist;
bytehashlistBigEndian:reverse peach bytehashlist;
Merkleroot: buildmerkleroot[bytehashlistBigEndian];

If you are astute, you may have noticed the coinbase transaction hash creep in there.

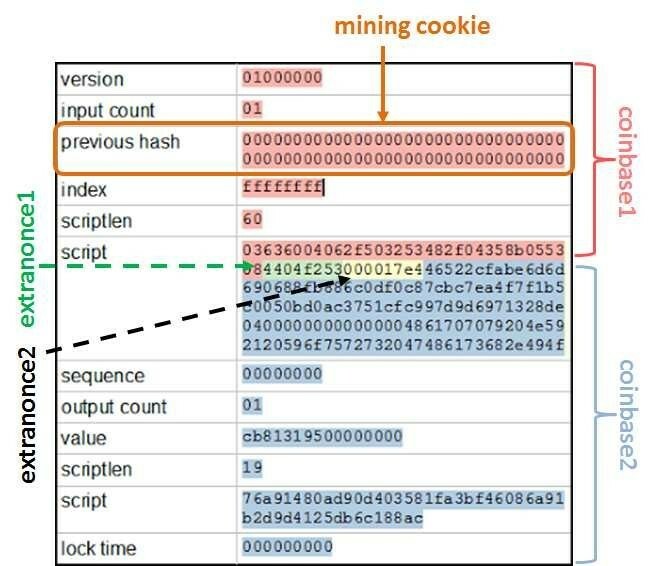

Coinbase transaction

The coinbase transaction is the record of the reward we pay ourselves for mining the block. As miners, we must place the coinbase transaction at the beginning of the transaction list. Format from Bitcoin.org

Coinbase transaction

coinbaseversion : "01000000"
coinbasein : "01"
coinbaseprevtx : "0000000000000000000000000000000000000000000000000000000000000000"
coinbaseprevout : "ffffffff";
coinbaseseq  :"00000000";
coinbaseout : "01";
cbpubkey : "866b6c77fd236f9185bb11b4e176328d7f912a4b";
scriptPubKey : "76","A9","14" , cbpubkey, "88", "AC";
coinbasesl : "19";
coinbaselocktime : "00000000";
coinbasesats: littleEndian [ coinbasevalue; 16 ];
coinbasescript : "03" , ( littleEndian [ height; 6 ] ), texttohexstr [ "Reap what you sow." ];
coinbasescriptlen : littleEndian[ "i"$( count coinbasescript ) %
 2;2];


coinbasetrans: coinbaseversion, coinbasein, coinbaseprevtx, coinbaseprevout, coinbasescriptlen, coinbasescript, coinbaseseq, coinbaseout, coinbasesats, coinbasesl, scriptPubKey, coinbaselocktime;
coinbasetransbytes : hexstring_to_hex coinbasetrans;
coinbasetranshash : raze string reverse doubleSha256Byte [ coinbasetransbytes ];

Again, for the astute there are a couple of points to note here outside of the format to pay yourself. First is that there are hidden messages encoded in each mined block (see cryptograffiti for examples ). Second is that there is a pubkey script language, using op codes to spend the outputs. This is bitcoin's smart contracts (for details see pubkey scripts). We use a standard Pay-to-Public-Key-Hash opcodes:

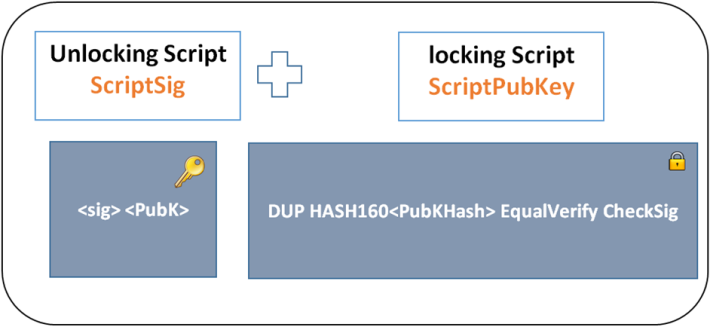

Locking script

  1. OP_DUP ( 0x76 ) - Duplicates the top stack item.
  2. OP_HASH160 ( 0xA9 ) - The input is hashed twice: first with SHA-256 and then with RIPEMD-160.
  3. OP_EQUALVERIFY ( 0x88 ) - Returns 1 if the inputs are exactly equal, 0 otherwise, runs OP_VERIFY afterward.
  4. OP_CHECKSIG ( 0xAC ) - The entire transaction's outputs, inputs, and script (from the most recently-executed OP_CODESEPARATOR to the end) are hashed. The signature used by OP_CHECKSIG must be a valid signature for this hash and public key. If it is, 1 is returned, 0 otherwise.

Hash race

Now we have the constructs to find a live solution and submit it to the blockchain for reward. The block is now simple to put together:

Block : Version , hashPrevBlock , Merkleroot , Time , Bits, 4#reverse 0x0 vs Nonce, transcounter , raze trans

Except that the header hash value must be less than the extremely improbable target value. To achieve this, miners can vary the Nonce from 0 to 4,294,967,295. They can also update the transaction pool or message text to attain a different merkle root. Miner software and hardware optimisations are geared towards looping through different Nonce value hashes at faster rates, often at great expense ( with setup, electricity and security ). Our script is a portable, energy efficient parallel CPU solution; competitive with pooled resources or a high performance cpu cluster. One run through the entire Nonce range looks like this:

curBlock: 0N! computeData`height;
latBlock: 0N! blockcount[];
i :4200000000;
while[11b ~  (curBlock > latBlock) , i > 0; // check if block is still current
    .Q.gc[]; // clean memory
    computehash peach i + til 100000000; // process in batches,
typically takes 1-2 minutes on a normal modern computer
    i : 0N! i - 100000000;

    latBlock: 0N! blockcount[]; ];

One run through of 4.3 billion Nonces would meet the base rate difficulty of the genesis block a decade ago. The difficulty is self adjusting to average 10 minutes a block and now requires more iterations. In our code, we update the transaction list to create a new merkle root after exhausting the Nonce range. In cases of reward conflict, the longest transaction list wins. Here is the code and functions we use for the continous mining effort:

submit:{[headerHex]headstr:raze string headerHex; blk: headstr ,raze string computeData`trans; h (`.bitcoind.submitblock;blk);0N! "SUCCESS: ", headstr;};
hashcheck:{[finalHash;headerHex]
  if [finalHash[til 7] ~ 0x00000000000000;
  targ: computeData`target;
  if [finalHash[7] <= targ[7];
    finalHashstr: raze string finalHash;
    lz:first where finalHashstr <> "0";
    $[leadingzeros < lz;
      [ submit[headerHex]; ];
      [ simpletarget: hex_to_int targ[8 9 10 11]
      simplehash: hex_to_int finalHash[8 9 10 11]
      if[ simplehash < simpletarget; submit[headerHex];]
      if [simplehash = simpletarget;
        simpletarget: hex_to_int targ[12 13 14 15]
        simplehash: hex_to_int finalHash[12 13 14 15]
        if[ simplehash < simpletarget; submit[headerHex];]
        if [simplehash = simpletarget;
          simpletarget: hex_to_int targ[16 17 18 19]
          simplehash: hex_to_int finalHash[16 17 18 19]
          if[simplehash < simpletarget; submit[headerHex];]
          if [simplehash = simpletarget;
            simpletarget: hex_to_int targ[20 21 22 23]
            simplehash: hex_to_int finalHash[20 21 22 23]
            if[ simplehash < simpletarget; submit[ headerHex ] ] ] ] ] ] ] ] ] }

computehash:{[Nonce]
    hashcheck[reverse sha2561[ endMerkle , 4#reverse 0x0 vs Nonce; H0; target32 ]; computeData`partialHeader , 4#reverse 0x0 vs Nonce];
    };

cycleAttempts: { [ ]
    computeData:: h"loadUpdates[];computeData";
    H0::  sha2560 64#computeData`partialHeader;
    target32:: -4#8#computeData`target;
    leadingzeros::  first where (raze string computeData`target) <> "0";
    endMerkle::  -12#computeData`partialHeader;
    //process 100,000,000 at a time ~ 1 min on a normal modern computer
    // check if block has already been mined between efforts
    curBlock: 0N! computeData`height;
    latBlock: 0N! blockcount[];
    i :4200000000;
    while[11b ~  (curBlock > latBlock) , i > 0;
        .Q.gc[];
        computehash peach i + til 100000000;
        i : 0N! i - 100000000;
        latBlock: 0N! blockcount[];
    ];
    cycleAttempts[];
    };

cycleAttempts[];

Perhaps you can see the rabbit hole. I refer the interested to the bitcoin white paper. Please visit our github page for full code. Feedback is welcome.
